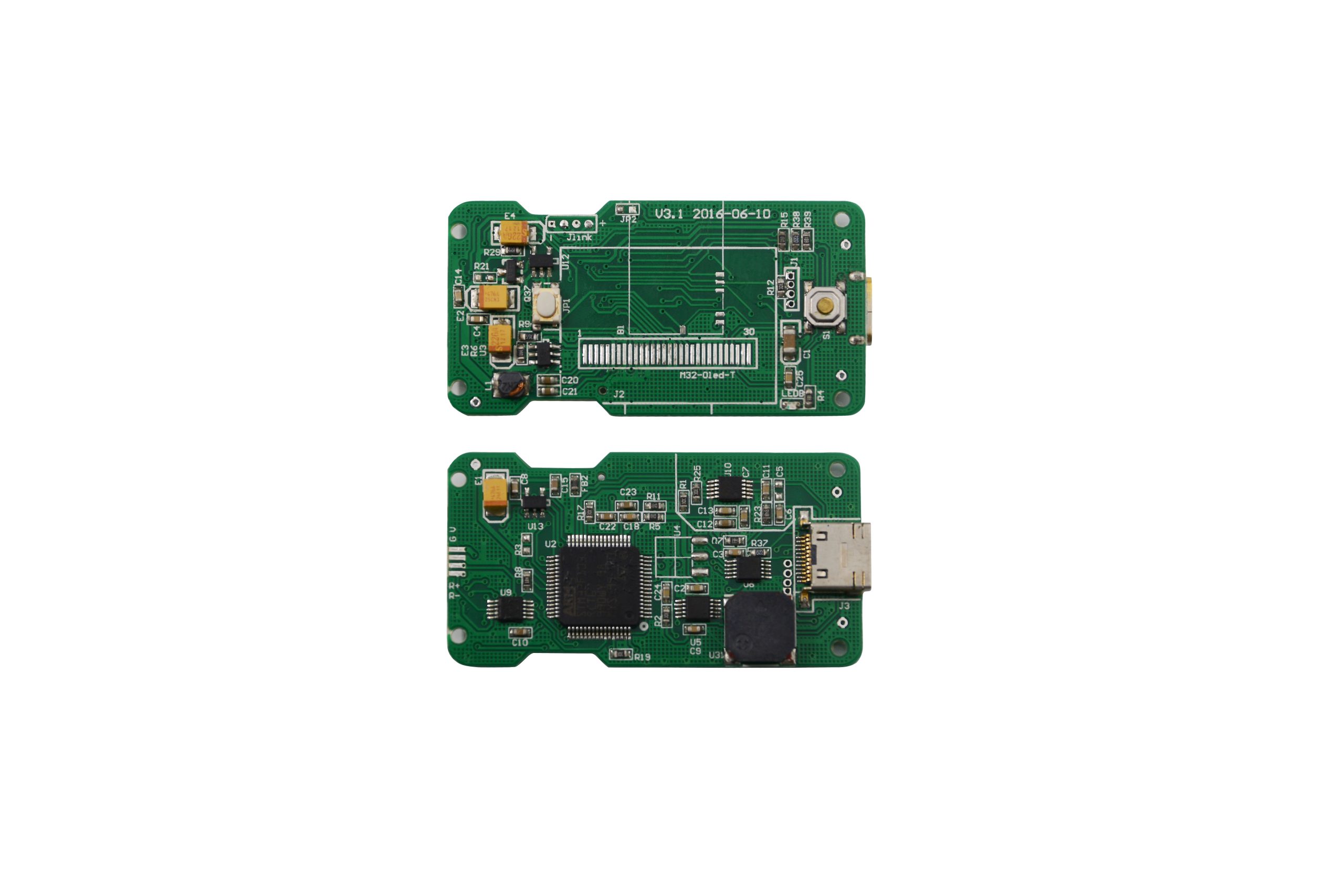

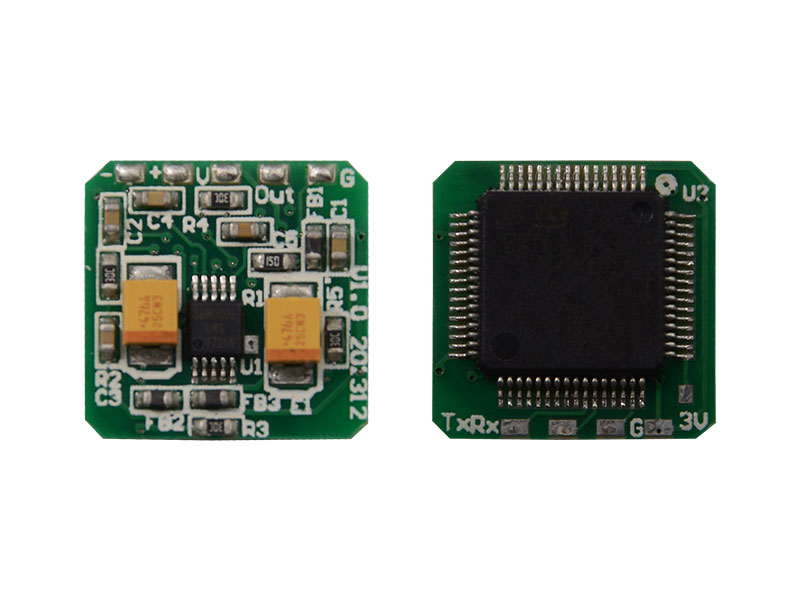

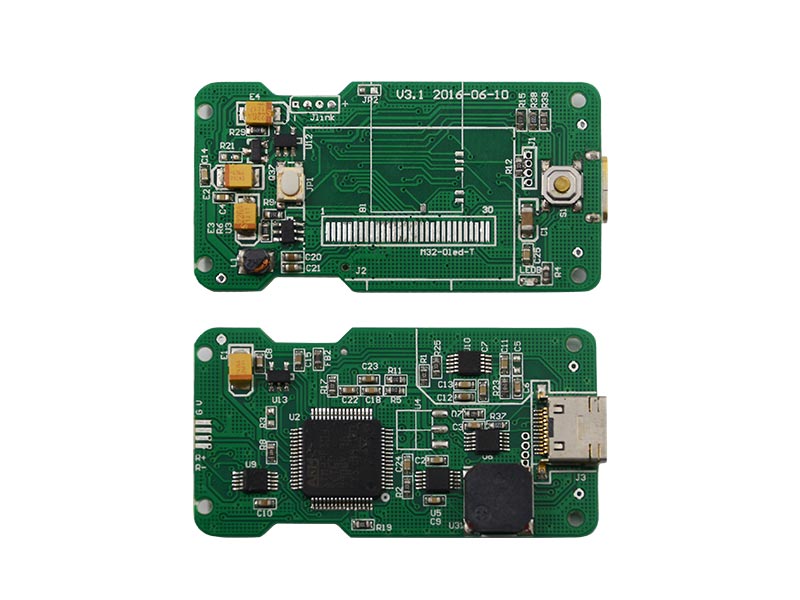

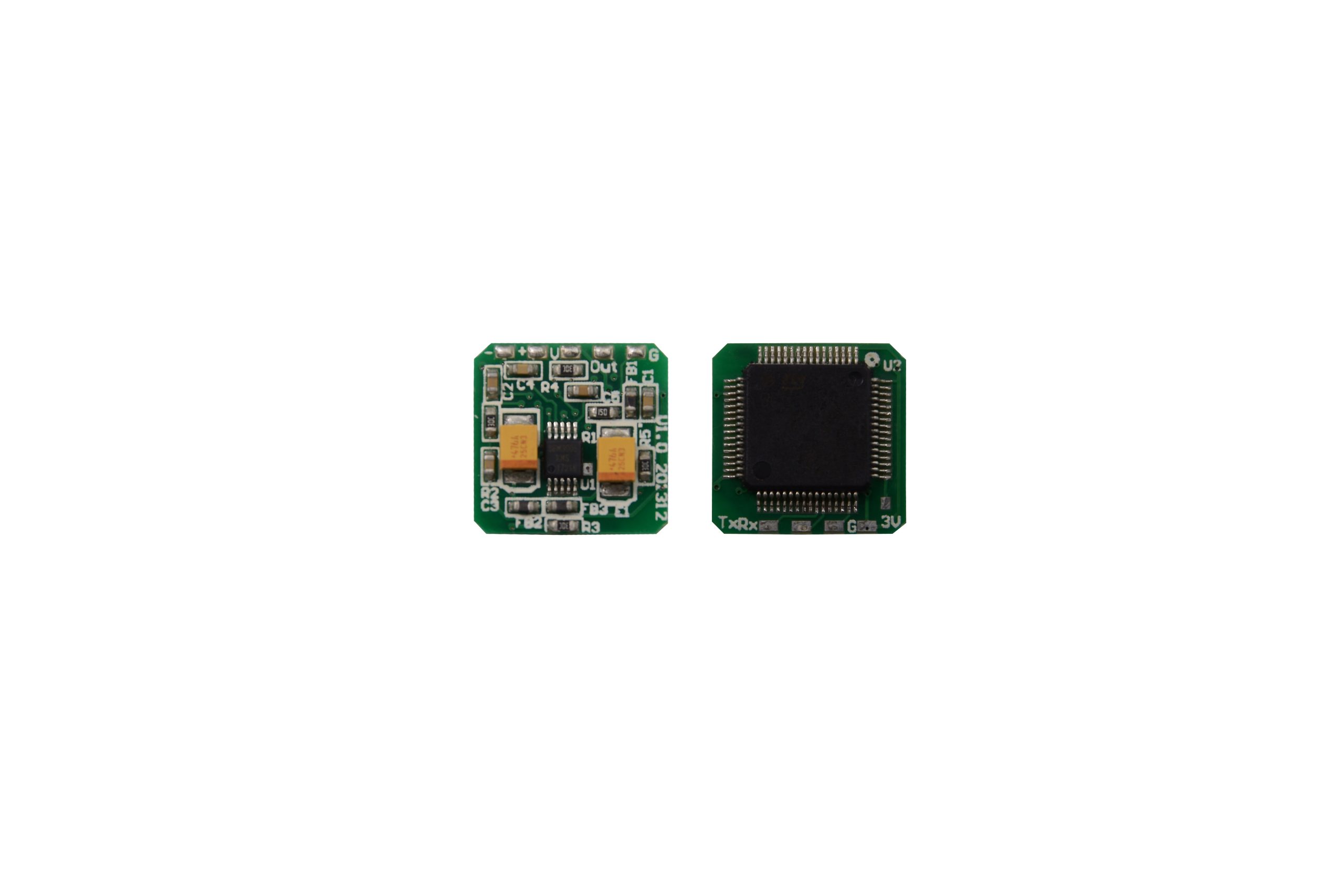

Pulse and Oxygen Saturation Module

Description

Function Declaration

1. Calculation result: The blood oxygen saturation and pulse rate are calculated;
2. Measurement unit: blood oxygen saturation%, pulse rate BPM;
3. Serial communication: RS232 port, TTL level, 9600 baud rate.

Performance Index

1. Measurement range: blood oxygen saturation 0-100%, pulse rate 30-250 beats/min;
2. Resolution: blood oxygen saturation: 1%, pulse rate 1 bpm;
3. Measurement accuracy: blood oxygen saturation is 2% (70-100%), with no definition below 70%; The pulse rate is 3 BPM (30-250 BPM); Weak perfusion > =0.1%.

Application Products / Accessories

Adult finger clip spO₂ sensor, adult silicone spO₂ sensor
Pediatric finger clip spO₂ sensor, Pediatric silicone spO₂ sensor
Infant finger clip spO₂ sensor, Infant disposable spO₂ sensor
Newborn wrapped belt spO₂ sensor, newborn disposable spO₂ sensor
Disposable spO₂ sensor for adults/children

Advantages and characteristics of Medlinket oxygen saturation module

Small size, flexible installation mode, high reliability and measurement accuracy;

Provide rapid and accurate measurement of blood oxygen saturation and pulse rate;

Using improved digital signal processing technology, the influence of human body movement and weak perfusion measurement can be effectively restrained;

Through invasive clinical accuracy test (compared with blood gas analyzer), ensure the clinical monitoring accuracy;

Applicable to adults, pediatric and newborns;

Single power supply 3.3V operation, low power consumption design;

The columnar schematic diagram of plethysmographic wave and pulse intensity can be displayed;

Simple serial port connection, easy to integrate;

Weak perfusion (reference simulator PI0.075) can be accurately measured;

It can measure accurately under 13 motion modes defined by simulator.

Environmental Description

1. Temperature: working at 0-45 degrees Celsius; Storage -20 to 55 degrees Celsius;
2. Humidity range: working 30-95%; Storage 10-95%;
3. Working altitude: -500-5000 meters;
4. Service life: motherboard for 10 years.

Meet the following criteria

IEC 60601-1-2，EN ISO80601-2-61
